Steel Stairs, Handrail and Balustrade

Steel Handrail Systems, Steel Stairs and Steel Balustrading

SEQ Steel Detailing have decades of experience detailing steel handrail, steel stairs and platforms and steel balustrading for commercial, industrial, mining and public infrastructure applications.

If you require standard RHS stringers, mono stringer or require a custom steel stringers we can produce steel fabrication drawings for steel stairs, handrails and platforms. We are experienced at steel detailing, webforge, monowills or custom hand railing and platform systems and can work with you to achieve the right outcome.

Steel Detailing and Workshop Fabrication Drawings for Steel Stairs, Handrail and Balustrade.

Our steel fabrication drawings combine all of the different “Webforge” items including Specific Stanchion types, Angle Closure Bends (ACB) or Horizontal Closure Bends (HCB), top and mid rails plus any bolts for site bolting etc… and arranges them into an assembly for ease of fabrication. Non-Webforge handrails can be similarly detailed.

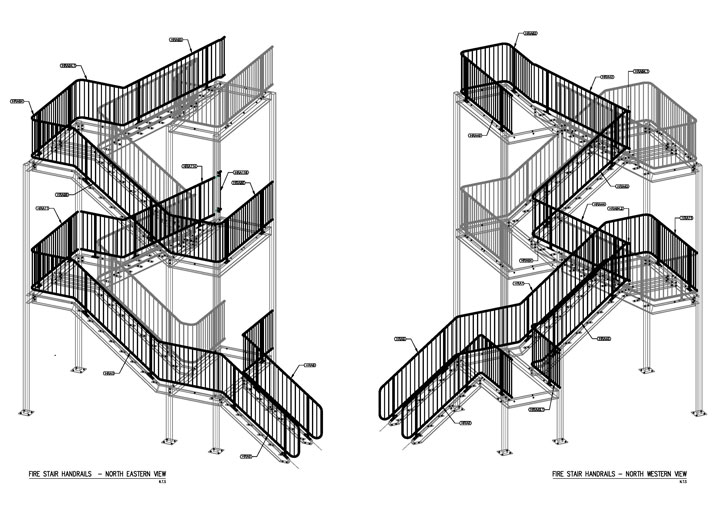

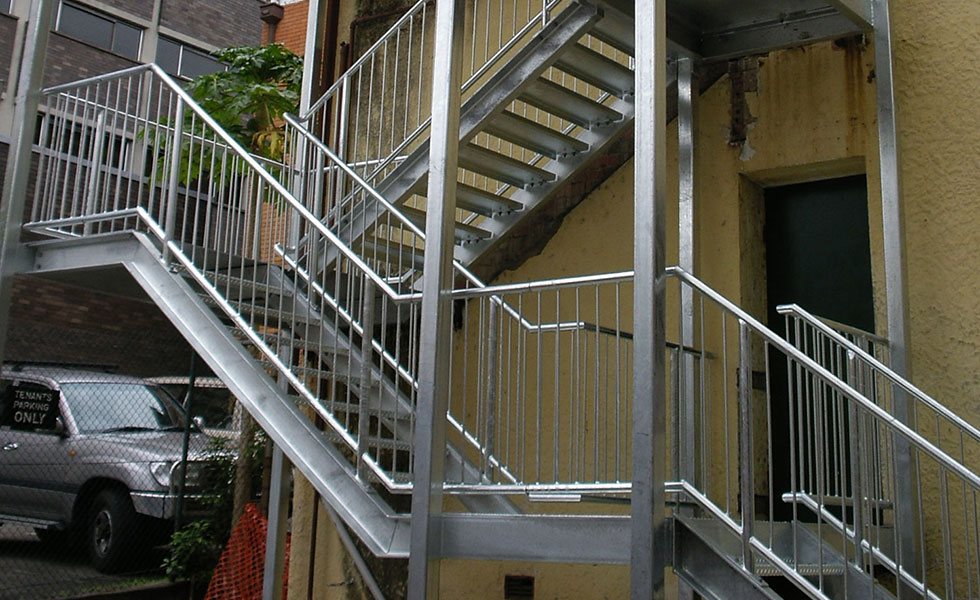

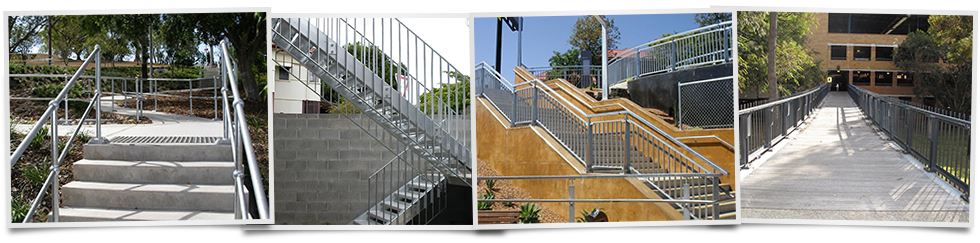

Applications include: Steel Stairways, Steel Ramps, Steel Landings,
Steel Access Bridges and Steel General Barrier Fences.

Industries serviced: Commercial steel, industrial steel,
public infrastructure works, high-end residential steel.

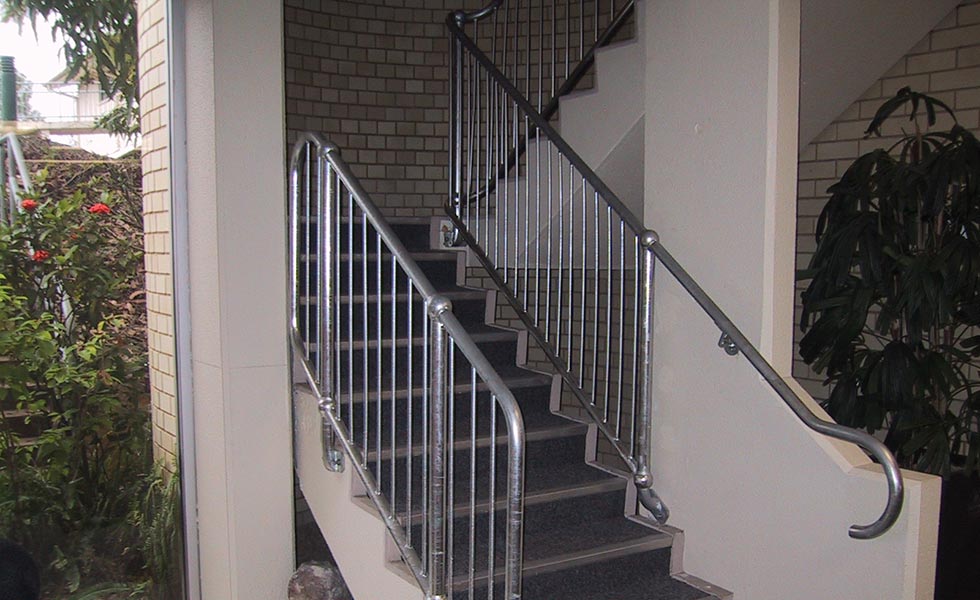

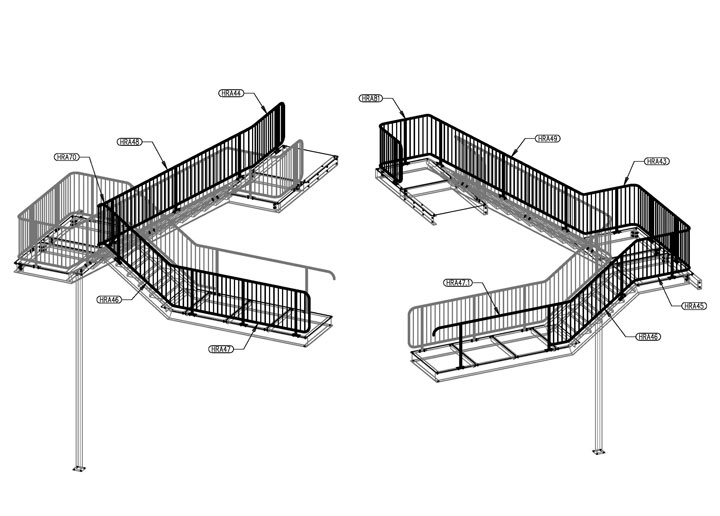

Steel Detailing for Handrails

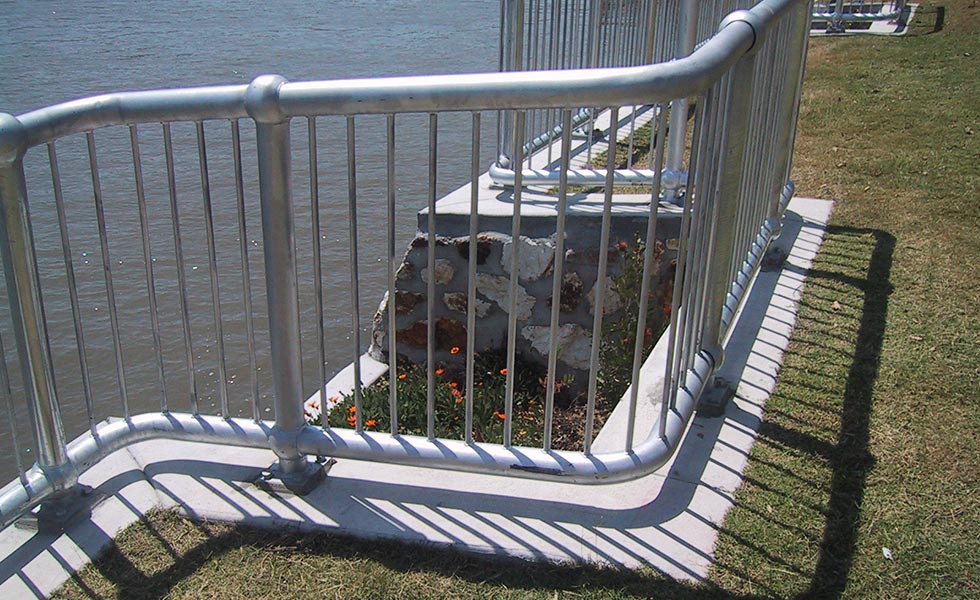

Steel Detailing for Jumborail

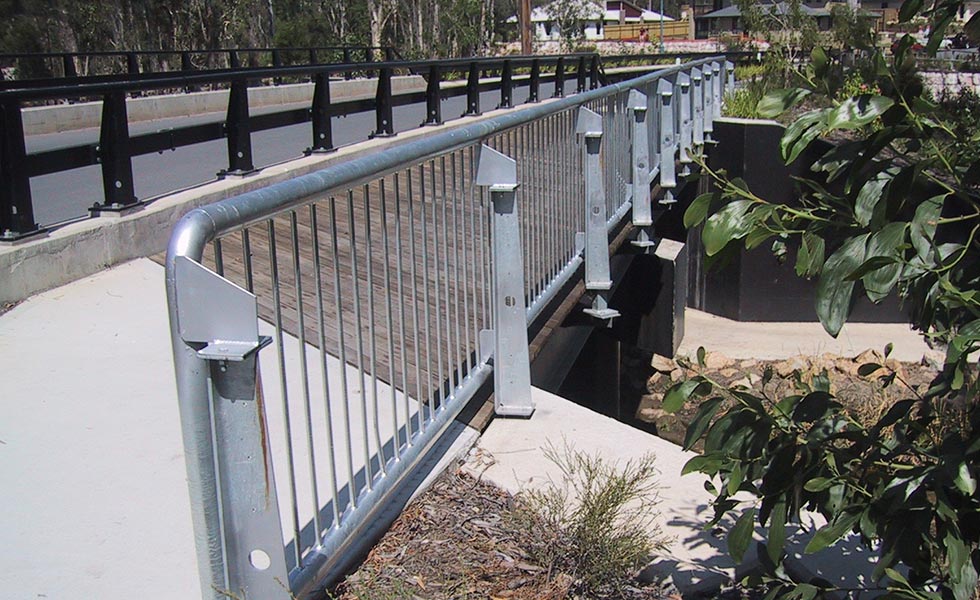

Steel Detailing for Balustrade

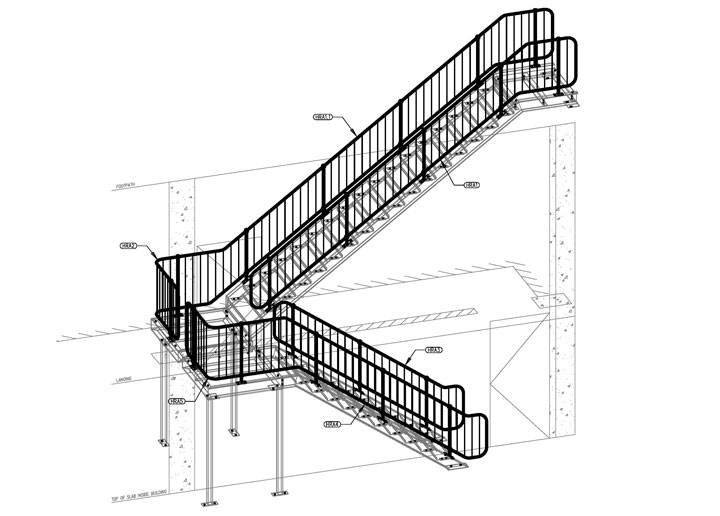

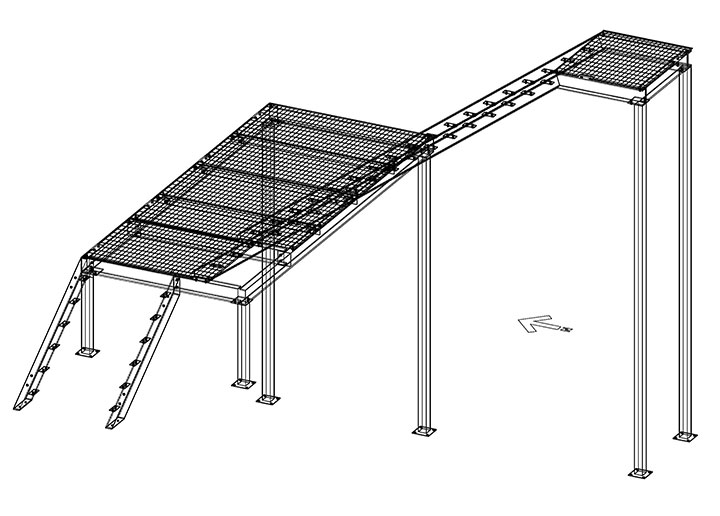

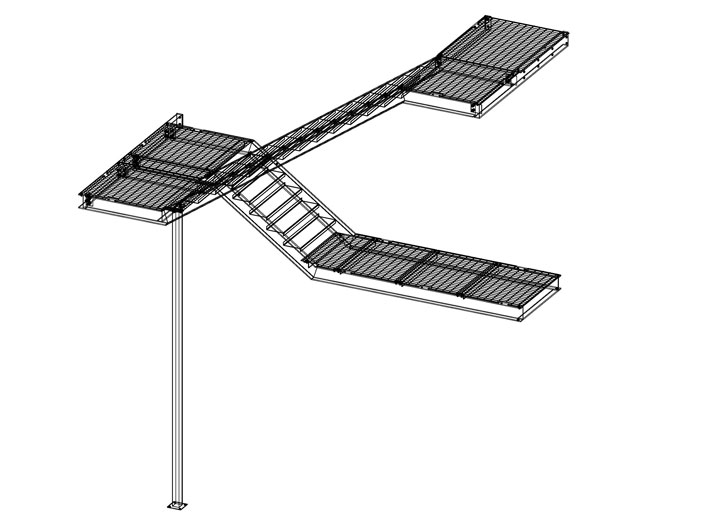

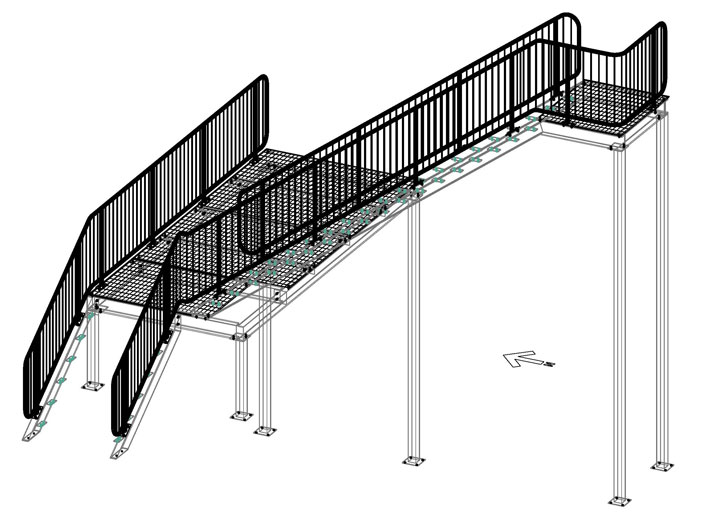

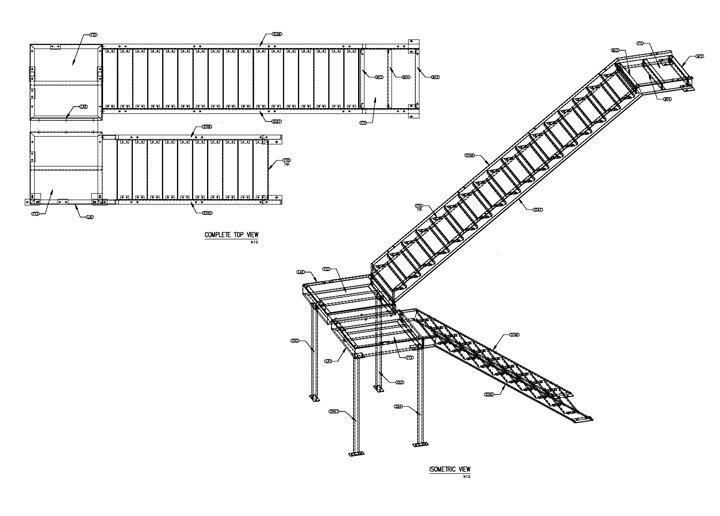

Steel Detailing for Stairs and Platforms

Steel detail drawings include:

  • Base Plates
  • Kickplate Mounting Brackets
  • Rail Specifications
  • Gates/Drop Barriers

  • Webforge Tubular Handrail System is detailed to comply with Australian Standard AS 1657/1985
  • All detailed drawings ready for fabrication

Site Measuring Services Available

SEQ Steel Detailing provide hassle-free site measurement services for work on new and existing steel projects, offering a range of options depending on your projects specific requirements, including…

More Information...

Talk to us about your project!

SEQ Steel Detailing provide ALL your Steel Detailing and Workshop Fabrication Drawing needs. Site Measuring, Modelling, Structural Engineering and Steel Detailing from the one company…
